直射日光の下でもクリアな表示を可能にした超高輝度LEDバックライトを採用。
サンテックが誇る屋外視認性向上超高輝度 TFT-LCDモジュールです。
スタンダード品のデータシート(PDF) をご覧いただけます！
CTP…Capacitive Touch Panel RTP…Resistive Touch Panel
| Size (Inch) |
Picture | Resolutions | Santek Model No. | Module Size (WxHxT mm) |
Active Area (LxW mm) |
Interface | Brightness (cd/m2) |
Touch Panel Model | |||
|---|---|---|---|---|---|---|---|---|---|---|---|

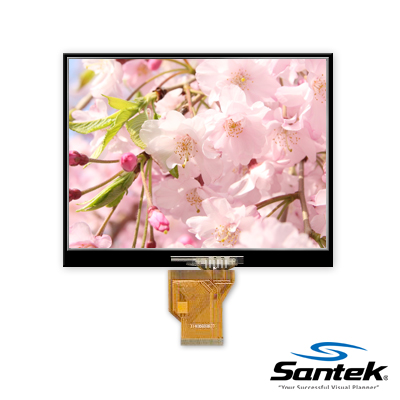

| 3.5" |  |
320x240 | ST0350T8W-RSHLW-F | 78.40x65.20x6.55 | 70.08x52.56 | RGB/ CCIR601/ CCIR656 |
800 | 1400 | RTP |  |
|
| 4.0" |  |
480x800 | ST0400A1-RSMLW-F | 57.10x97.88x1.85 | 86.40x51.84 | RGB 24BITS |
800 | RTP | CTP | |
|
| 4.3" |  |
480x272 | ST0430G3W-RSHLW-F | 106.70x68.00x7.45 | 95.04x53.856 | RGB 24BITS |
800 | 1400 | RTP | CTP | |
 |
480x272 | ST0430S1W-RSHLW-F | 106.70x68.00x7.45 | 95.04x53.856 | RGB 24BITS |
800 | 1400 | RTP | CTP | |
|
| 5.0" |  |
720x1280 | ST0500S12WCYOL-RSHLW-F | Under Development |
62.1x110.4 | 4-lane MIPI |
1000 | CTP | |
||
| 5.6" |  |
640x480 | ST0560I4W-RSHLW-F | 126.50x100.20x7.60 | 112.896x84.672 | RGB 18BITS |
800 | 1400 | RTP | CTP | |
| 7.0" |  |
800x480 | ST0700I7W-RSHLW-F | 166.00x106.00x8.05 | 152.40x91.44 | RGB 18BITS |
800 | 1400 | RTP | CTP | |
| 8.0" |  |
800x600 | ST0800C6W-RSHLW-F | 176.28x138.20x7.90 | 162.00x121.50 | RGB 24BITS |
800 | 1200 | RTP | CTP | |
 |
800x1280 | ST0800I1-RSHLW-C | Under Development |
172.224x107.64 | MIPI | 1000 | Under Development |
|
|||
| 10.1" |  |
1280x800 | ST1010I1-RSHLW-C | Under Development |
216.96x135.60 | LVDS | 1000 | Under Development |
|
||
| 10.2" |  |
800x480 | ST1020I3W-RSHLW-F2 | 237.80x156.00x8.60 | 222.00x132.48 | RGB 18 BITS |
800 | 1400 | RTP | CTP | |
| 15.0" |  |
1024x768 | ST1500G1W-RSHLW-F | 327x254x14.35 | 304.13x228.09 | LVDS | 1600 | N/A | |
||
| 21.5" |  |
1920 x1080 |
ST2150G1W-RSHLW-F | 501x297x13.6 | 476.6x268.11 | LVDS | 1200 | N/A | |
||
| 32.0" |  |
1920 x1080 |
ST3155G1W-RSHLW-F | 727.4x429x53 | 698.4x392.85 | LVDS | 1500 | N/A | |
||
独創的なサイズのストレッチLCDディスプレイ。
電車やバス等の公共機関はもちろんのこと自動販売機やサイネージ等にも幅広く使うことができます。
OSやスピーカーを内蔵した27.6インチLCDモニターは直ぐにご利用いただけます。
| Size (Inch) |
Resolutions | Santek Model No. | Module Size (WxHxT mm) |
Active Area (LxW mm) |
Interface | Brightness (cd/m²) |
Remark |
|---|---|---|---|---|---|---|---|
| 8.8" | 1280x480 | ST0880P1W-RSLW-F | 229.6x97.35x6.2 | 209.28x78.48 | LVDS | 500 | LCD Module |
| 10.3" | 1284x480 | ST1030P1W-RSMLW-F | 265.2 x 109.8 x 6.9 | 243.84 x 91.44 | LVDS | 700 | LCD Module |
| 12.3" | 1920x720 | ST1230P1W-RSMLW-C | 325.8x132.2x7.288 | 292.032x109.512 | LVDS | 700 | LCD Module |
| 27.6" | 1920x360 | ST2760P1W-RSHLW-C | 725.1x166.7x18 | 688.896x129.168 | LVDS | 1000 | LCD Module |
| 27.6" | 1920x360 | SDB2760P1B (Black) | 751x192.7x65 | 688.896x129.168 | USB/VGA/AV/HDMI | 1000 | LCD Monitor |
| 27.6" | 1920x360 | SDB2760P1W (White) | 751x192.7x65 | 688.896x129.168 | USB/VGA/AV/HDMI | 1000 | LCD Monitor |
