Products & RFQ

Standard OLED

pdfアイコンThe Data sheets (PDF) of our standard models are available!

CTP…Capacity Touch Panel RTP…Resistive Touch Panel

Size
(Inch)
Picture Resolutions Santek Model No. Module Size
(W×H×T mm)
Active Area Operating Temperature;
Storage Temperature
Color Connector Type PDF

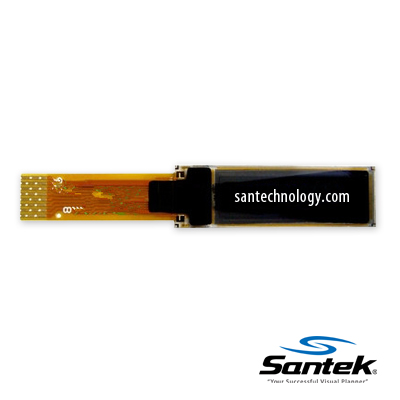

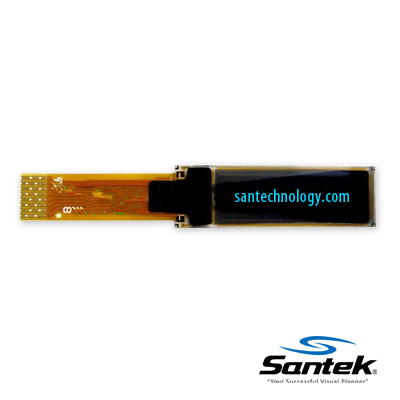

0.69" 96x16 SO0069V1W-GW-F 26.30x
8.00x
1.30
17.26x
3.18
-40℃ to+70℃;
-40℃ to+80℃
White Solder type pdf
96x16 SO0069V2W-GB-F 26.30x
8.00x
1.30
17.26x
3.18
-40℃ to+70℃;
-40℃ to+80℃
Light Blue Solder type pdf
0.73" 96x24 SO0073A1-GW-F 22.30x
9.00x
0.965
218.018x
4.554
CPU 8BITS White Insert type pdf

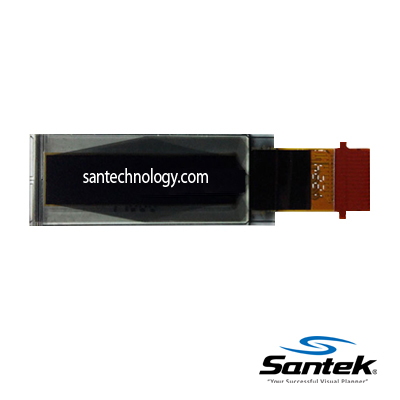

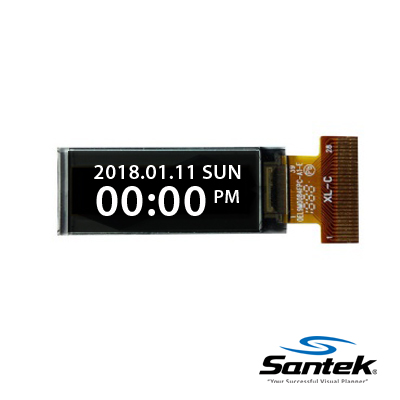

0.91" 128x32 SO0091V2O-GW-F 40.50x
11.50x
1.28
22.38x
5.58
-40℃ to+70℃;
-40℃ to+85℃
White Solder type pdf
128x32 SO0091V1O-GW-F 26.90x
13.70x
1.28,
22.375x
5.58
-40℃ to+70℃;
-40℃ to+85℃
White; Solder type pdf
128x32 SO2832V1W-GW-F 40.60x
56.60x
2.70
33.84x
45.12
RGB 18BITS
+ 4wire SPI
    pdf
0.95" 96x64 SO0095V1O-GR-F 24.80x
52.62x
1.25
20.135x
13.42
-40℃ to+70℃;
-40℃ to+85℃
Full Color Insert type pdf
96x64 SO0095V2-GW-F 24.80x
29.62x
1.30
20.14x
13.42
-30℃ to+70℃;
-30℃ to+80℃
White Solder type pdf
96x64 SO9664A2W-GR-F 24.80x
29.62x
1.33
20.135x
13.42
-30℃ to+70℃;
-30℃ to+80℃
Full Color Solder type pdf

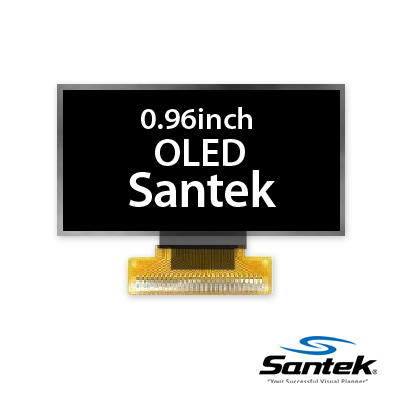

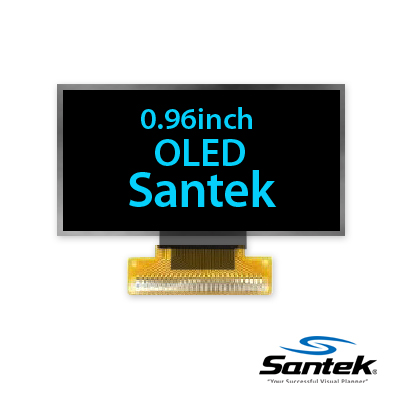

0.96" 128x64 SO1264R1W 26.70x
28.06x
1.30
21.74x
11.20
-20℃ to+70℃;
-30℃ to+80℃
Yellow & Blue Solder type; pdf

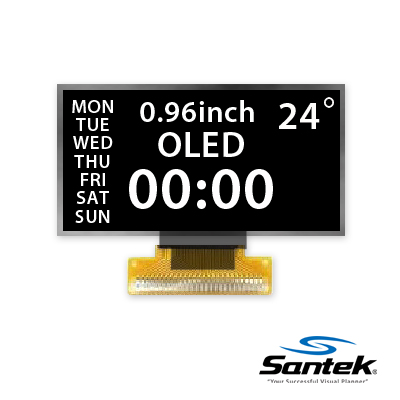

128x64 SO1264S1W-GW-F 26.70x
28.06x
1.30
21.74x
11.175
-20℃ to+70℃;
-30℃ to+80℃
White Solder type pdf
128x64 SO0096V1O-GW-F 26.70x
29.06x
1.28
21.74x
11.18
-40℃ to+70℃;
-40℃ to+85℃
White pdf
128x64 SO0096V2O-GW-F 26.70x
34.86x
1.28
21.74x
11.18
-40℃ to+70℃;
-40℃ to+85℃
White Insert type pdf
128x64 SO0096V4O-GB-F 26.70x
39.26x
1.28
21.74x
11.18
-40℃ to+70℃;
-40℃ to+85℃
Blue Insert type pdf
128x64 SO0096V5O-GW-F 26.70x
32.76x
1.38
21.74x
11.18
-40℃ to+70℃;
-40℃ to+85℃
White Insert type pdf

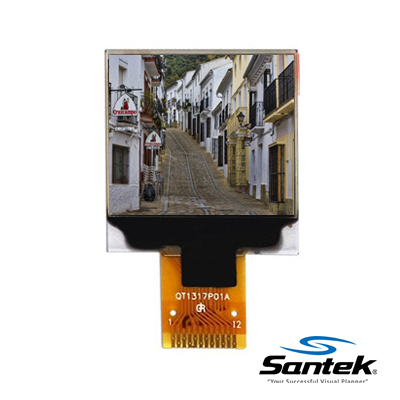

1.12" 96x96 SO0112V1O-GR-F 27.50x
50.95x
1.28
20.135x
20.14
-40℃ to+70℃;
-40℃ to+85℃
Full Color Solder type pdf
96x96 SO0112V2O-GR-F 27.00x
55.10x
1.28
20.135x
20.14
-40℃ to+70℃;
-40℃ to+85℃
Full Color Insert type pdf

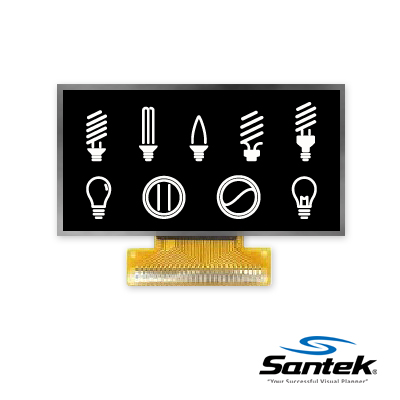

1.54" 128x64 SO0154V1W-GW-F 42.04x
70.62x
1.45
35.052x
17.516
-40℃ to+70℃;
-40℃ to+85℃
White Insert type pdf
1.7" 160x128 SO0177V1O-GR-F 42.70x
65.40x
2.025
35.015x
28.012
-40℃ to+70℃;
-40℃ to+80℃
Full Color Insert type pdf

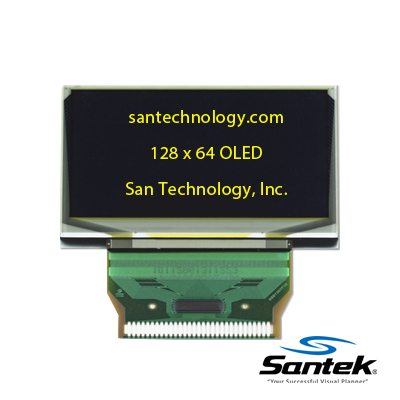

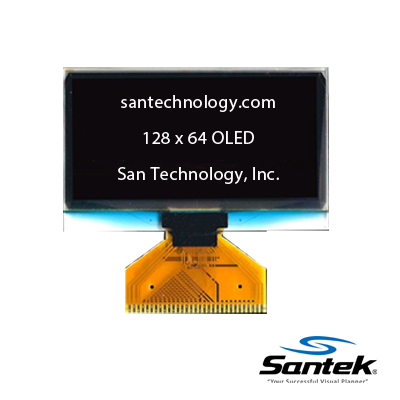

2.4" 128x64 SO0240V1W-GY-F 60.50x
55.60x
2.03
55.01x
27.49
-40℃ to+70℃;
-40℃ to+85℃
Yellow Solder type pdf

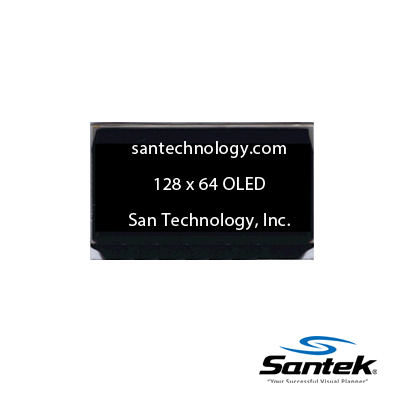

128x64 SO0240V1O-GW-F 60.50x
55.60x
2.03
55.01x
27.49
-40℃ to+70℃;
-40℃ to+85℃
White Solder type pdf
128x64 SO0240V3-GW-F 60.50x
73.00x
2.03
55.01x
27.49
-40℃ to+70℃;
-40℃ to+85℃
White Insert type pdf

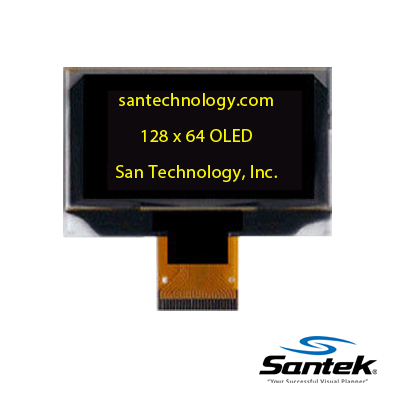

128x64 SO0240V2W-GA-F 60.50x
55.60x
2.01
55.01x
27.49
-40℃ to+70℃;
-40℃ to+85℃
Amber Solder type pdf

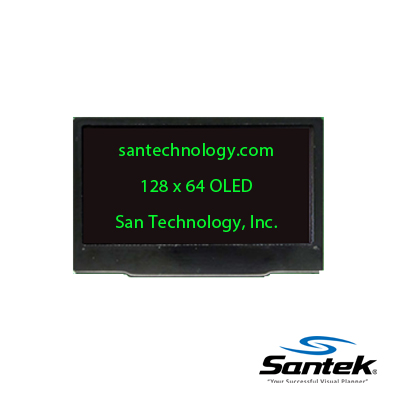

128x64 SO0240V4-GG-F 60.50x
55.60x
2.03
55.01x
27.49
-40℃ to+70℃;
-40℃ to+85℃
Green Solder type pdf
2.7" 128x64 SO0270V1W-GG-F 73.00x
56.66x
2.03
61.41x
30.69
-40℃ to+70℃;
-40℃ to+85℃
Green Insert type pdf

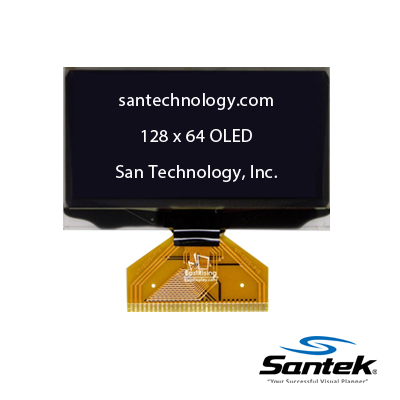

2.8" 128x64 SO0280V1W-GW-F 84.00x
45.80x
2.03
69.10x
17.26
-40℃ to+70℃;
-40℃ to+85℃
White Insert type pdf
