Sunlight Readable TFT

Santek proudly presents our Ultra-Bright TFT-LCD series. The sunlight readable series utilizes super
bright LED backlight, is readable under direct sunlight, and gives you the intensity and brilliance your
application requires.

pdfアイコンThe Data sheets (PDF) of our standard models are available!

CTP…Capacitive Touch Panel  RTP…Resistive Touch Panel

Size
(Inch)
Picture Resolutions Santek Model No. Module Size
(WxHxT mm)
Active Area Interface Brightness
(cd/m2)
Touch Panel Model PDF

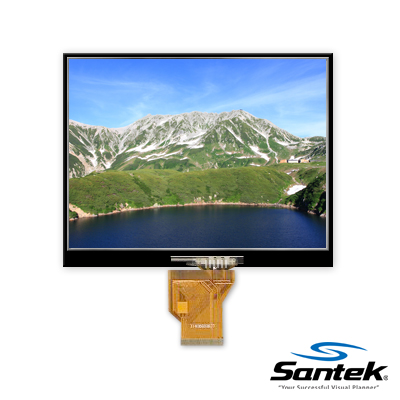

3.5" 320x240 ST0350T8W-RSHLW-F 78.40x65.20x6.55 70.08x52.56 RGB/
CCIR601/
CCIR656
800 1400 RTP pdf

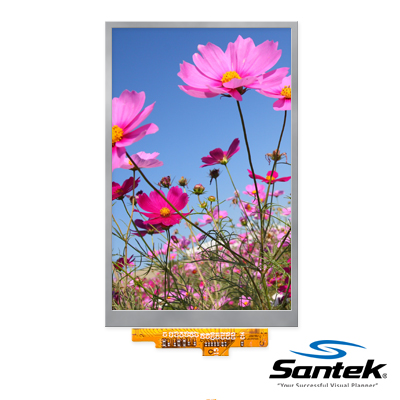

4.0" 480x800 ST0400A1-RSMLW-F 57.10x97.88x1.85 51.84x86.40 RGB
24BITS
800 RTP CTP pdf

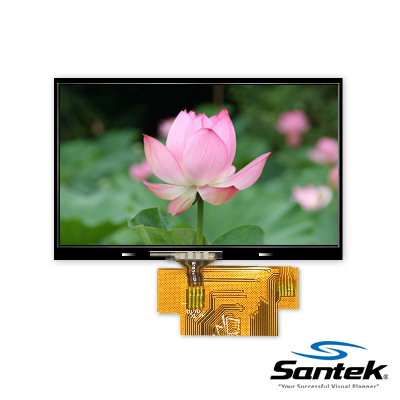

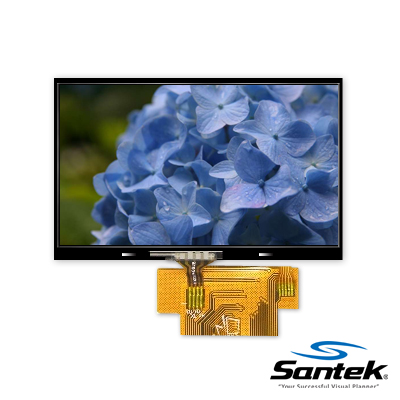

4.3" 480x272 ST0430G3W-RSHLW-F 106.70x68.00x7.45 95.04x53.856 RGB
24BITS
800 1400 RTP CTP pdf

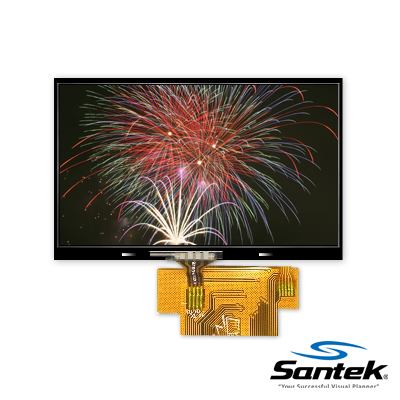

480x272 ST0430S1W-RSHLW-F 106.70x68.00x7.45 95.04x53.856 RGB
24BITS
800 1400 RTP CTP pdf

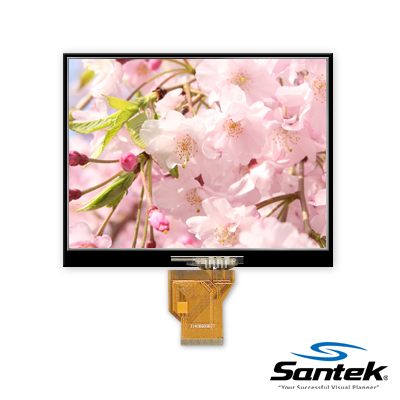

5.6" 640x480 ST0560I4W-RSHLW-F 126.50x100.20x7.60 112.896x84.672 RGB
18BITS
800 1400 RTP CTP pdf

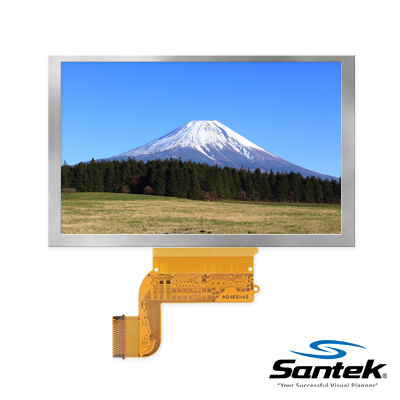

7.0" 800x480 ST0700I7W-RSHLW-F 166.00x106.00x8.05 152.40x91.44 RGB
18BITS
800 1400 RTP CTP pdf

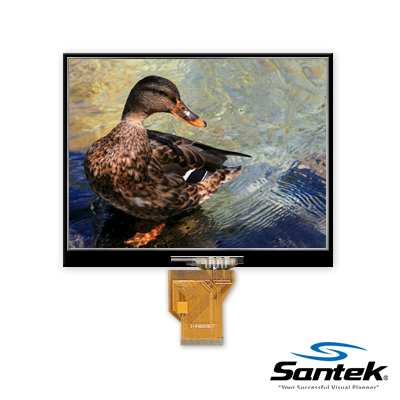

8.0" 800x600 ST0800C6W-RSHLW-F 176.28x138.20x7.90 162.00x121.50 RGB
24BITS
800 1200 RTP CTP pdf
800x1280 ST0800I1-RSHLW-C Under
Development
107.64x172.224 MIPI 1000 Under
Development
pdf
10.1" 1280x800 ST1010I1-RSHLW-C Under
Development
216.96x135.60 LVDS 1000 Under
Development
pdf
10.2" 800x480 ST1020I3W-RSHLW-F2 237.80x156.00x8.60 222.00x132.48 RGB
18 BITS
800 1400 RTP CTP pdf
15.0" 1024x768 ST1500G1W-RSHLW-F 327x254x14.35 304.13x228.09 LVDS 1600 N/A pdf
21.5" 1920
x1080
ST2150G1W-RSHLW-F 501x297x13.6 476.6x268.11 LVDS 1200 N/A pdf
32.0" 1920
x1080
ST3155G1W-RSHLW-F 727.4x429x53 698.4x392.85 LVDS 1500 N/A pdf

Bar Type TFT

Bar type LCD, or ultra wide stretch LCD Screen is suitable for panoramic
content view or application in transportation,
ticket and vending machines as well as digital signage.
We also provide 27.6" LCD monitor with OS and Speaker.

Bar Type TFT
Size
(Inch)
Resolutions Santek Model No. Module Size
(WxHxT mm)
Active Area
(LxW mm)
Interface Brightness
(cd/m²)
Remark
8.8" 1280x480 ST0880P1W-RSLW-F 229.6x97.35x6.2 209.28x78.48 LVDS 500 LCD Module
10.3" 1284x480 ST1030P1W-RSMLW-F 265.2 x 109.8 x 6.9 243.84 x 91.44 LVDS 700 LCD Module
12.3" 1920x720 ST1230P1W-RSMLW-C 325.8x132.2x7.288 292.032x109.512 LVDS 700 LCD Module
27.6" 1920x360 ST2760P1W-RSHLW-C 725.1x166.7x18 688.896x129.168 LVDS 1000 LCD Module
27.6" 1920x360 SDB2760P1B (Black) 751x192.7x65 688.896x129.168 USB/VGA/AV/HDMI 1000 LCD Monitor
27.6" 1920x360 SDB2760P1W (White) 751x192.7x65 688.896x129.168 USB/VGA/AV/HDMI 1000 LCD Monitor
